DAM API

The DAM API abstracts the storage location of assets, allowing you to work with assets regardless of where they are stored. You use the API in templating, templates, and models. It provides read-only access to assets managed in the Magnolia Assets subapp.

The DAM API provides the following features:

  • Clean, simple, and easy to use.

  • Flexible, extendable, and user-friendly. You can extend the API and create your own asset providers for external systems.

  • Generic and not tied to JCR.

  • Connects to external asset providers such as Flickr, YouTube, and file systems.

  • Supports industry-standard media types.

  • Separates asset metadata from binaries.

Architecture

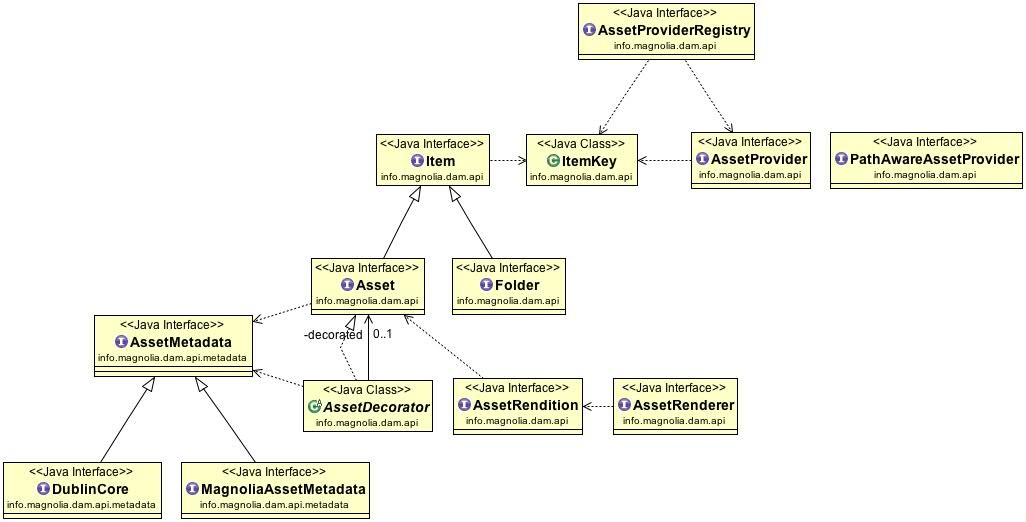

The diagram provides an overview of how the main interfaces and classes of the DAM API relate.

API overview

Interfaces

  • info.magnolia.dam.api.AssetProviderRegistry is the main entry point. Given an ItemKey or MediaType, it’s responsible for finding the correct AssetProvider and AssetRenderer.

  • info.magnolia.dam.api.AssetProvider: Exposes Folders and Assets from a particular source. Specifics of the storage of these items are left to implementations. While most provider implementations only use the ItemKey.assetId field of keys passed to the various get methods, the entire key object is passed for consistency and flexibility. This makes it possible to implement, for example, delegating and aggregating providers.

  • info.magnolia.dam.api.PathAwareAssetProvider: Exposes specific operations for AssetProviders that are aware of paths, for example JCR, CMIS, File system etc. Not all providers need or want to implement these features. The term "path" is flexible. It can represent a single name or a relative path within the data source.

  • info.magnolia.dam.api.AssetRenderer: Provides AssetRenditions by bridging an asset’s data and some type of converter. AssetRenderers can be provided by AssetProviders if the AssetProvider itself (or the underlying system) is capable of managing the conversion/translation, or via a global registry. AssetProviderRegistry.getRendererFor(info.magnolia.dam.api.Asset, com.google.common.net.MediaType) provides the entry point. It looks up in provider, then in its own registry, and bridges to other possible conversion mechanisms that are independent of Magnolia DAM.

  • info.magnolia.dam.api.Asset: An Asset is a digital resource with associated metadata.

  • info.magnolia.dam.api.Folder: A Folder represents a structural item holding Assets. Depending on the provider, this can be directly mapped to the concept of folders/directories (JCR, FileSystems and so on), and for other types, it may map to the concept of albums,playlists, sets, and so on.

  • info.magnolia.dam.api.Item: Defines a common interface for Asset and Folder.

  • info.magnolia.dam.api.AssetQuery: Represents a query to an AssetProvider. Use new AssetQuery.Builder()…​build() to construct instances.

  • info.magnolia.dam.api.AssetRendition: An AssetRendition is a view on a asset for a specific MediaType. It can be a simple resize of an image or a document conversion.

Enum

  • info.magnolia.dam.api.AssetProviderCapability: Clients can ask a provider if they support a certain feature before attempting to use it. Typically, this would enable or disable certain UI features. In some cases, this also indicates that client code can cast to a specific interface (such as PathAwareAssetProvider for hierarchical). If support for write operations is added, this enum is extended with new capabilities.

Classes

  • info.magnolia.dam.api.AbstractAssetProvider: Convenient abstract base class for implementations. Enables configurations of MediaType that the implemented AssetProvider provides.

  • info.magnolia.dam.api.AbstractItem: Common superclass for any DAM Item.

  • Builder: A builder for AssetQuery that provides a fluent API.

  • info.magnolia.dam.api.ItemKey: A composite key. In the DAM, every Asset and Folder is identified by its provider’s ID and its provider-specific ID (that is, the ID with which the provider can uniquely identify the asset).

Metadata interfaces

  • info.magnolia.dam.api.metadata.AssetMetadata: A common interface for asset metadata. Different types of metadata can be exposed through Asset by extending this interface. The AssetProvider should implement support for those. Specific metadata interfaces should expose methods with explicit names and return types, and ideally provide property descriptions in the Javadocs. Metadata is retrieved through an Asset by passing the specific type of metadata, that is, a class object that extends this interface.

  • info.magnolia.dam.api.metadata.DublinCore: A collection of Dublin Core metadata names. Extends AssetMetadata. Methods: getContributor,getCoverage, getCreated, getCreator, getDate, getDescription, getFormat, getIdentifier, getLanguage, getModified, getPublisher, getRelation, getRights, getSource, getSubject, getTitle, getType.

  • info.magnolia.dam.api.metadata.MagnoliaAssetMetadata: Defines Magnolia-specific metadata. Extends AssetMetadata. Methods: getHeight, getWidth.

Asset binary management

In DAM 5 and later, Magnolia deprecates Asset.getContentStream in favor of Asset.getBinaryReference. This decouples asset binaries from Magnolia, making it easier to retrieve binaries outside the Magnolia instance.

The magnolia-dam-binary-api module provides interfaces for binary management without dependencies on Magnolia modules. You can implement your own binary management solution with minimal effort.

import info.magnolia.dam.binary.api.BinaryGetter;
import info.magnolia.dam.binary.api.BinaryReference;
import info.magnolia.dam.binary.api.Binary;

public class MyClass {
    @Inject
    public MyClass(BinaryGetter binaryGetter) {
        this.binaryGetter = binaryGetter;
    }

    public Optional<InputStream> binaryFromReference(BinaryReference binaryReference) {
        return binaryGetter.getBinary(binaryReference)
            .map(Binary::getInputStream);
    }
}

AssetProvider

  • AssetProvider has capabilities (info.magnolia.dam.api.AssetProviderCapability). Some implementations will not support all features. This can be used to drive a UI to enable/disable certain actions or UI elements. Implementations should still throw exceptions when those unsupported operations are called. However, this may not consistently be the case, for example when aggregating search results from different providers.

  • ItemKey is a specific type (composed of providerId and assetId) rather than a magic string. It’s passed to most methods, rather than the assetId string. This allows for aggregation/delegation in specialized providers.

AssetProviders are registered by configuration in the DAM Core module.

Items, assets and folders

  • Item is the main parent definition of a Folder and an Asset.

  • Asset is the abstract representation of a binary document.

  • Folder is the abstract representation of a folder that contains Asset.

Implementation notes

  • To some extent, Items, Folders, and Assets mimic the JCR API, but there are subtle differences that are highlighted in the Javadocs.

  • Items, Folders, and Assets are meant to be implemented lazily. Implementations will typically keep a reference to their provider. For example, the JCR implementation keeps a reference to the corresponding Node instance and delegates to it on demand.

AssetRenditions and MediaTypes

An AssetRendition is a transformation of an Asset. The AssetRenderer provides AssetRenditions by bridging an Assets dataand some type of converter.

  • AssetRenderer can be provided by AssetProvider when the conversion or translation can be managed by the AssetProvider itself (or its underlying system), or via a global registry.

  • `AssetProviderRegistry.getRendererFor(Asset asset,MediaType mediaType)`provides the entry point. It looks up in the provider then in its own registry, and bridges to other possible conversion mechanisms that are independent of the Magnolia DAM.

AssetRenderers are registered by configuration in the DAM Core module.

MediaType

In DAM 2.0 and later, the com.google.common.net.MediaType class is included in the Google Guava library.

Here’s the class description from the Guava Javadoc.

Represents an Internet Media Type (also known as a MIME Type or Content Type). This class also supports the concept of media ranges defined by HTTP/1.1. As such, the character is treated as a wildcard and is used to represent any acceptable type or subtype value. A media type may not have wildcard type with a declared subtype. The character has no special meaning as part of a parameter. All values for type, subtype, parameter attributes or parameter values must be valid according to RFCs 2045 and 2046.

All portions of the media type that are case-insensitive (type, subtype, parameter attributes) are normalized to lowercase. The value of the charset parameter is normalized to lowercase, but all others are left as-is.

Note that this specifically does not represent the value of the MIME Content-Type header and as such has no support for header-specific considerations such as line folding and comments.

For media types that take a charset the predefined constants default to UTF-8 and have a _UTF_8 suffix. To get a version without a character set, use withoutParameters().

JCR API

The DAM JCR API classes reside in the DAM JCR module and implement the DAM API for JCR assets that are stored in the dam workspace and accessible in the Assets app.

In DAM 5 and later, the JCR API implementation changes to allow binaries to be stored outside of JCR. This means you may experience compatibility issues when upgrading from previous versions. We don’t recommend using the JCR API for any new development; use the DAM API instead

JCR classes

  • info.magnolia.dam.jcr.JcrAssetProvider: AssetProvider that delivers assets for the dam workspace. Extends AbstractAssetProvider and implements PathAwareAssetProvider.

  • info.magnolia.dam.jcr.AbstractJcrItem: JCR implementation of an Item. Extends AbstractItem<JcrAssetProvider>.

  • info.magnolia.dam.jcr.JcrAsset: JCR implementation of the Asset definition. Extends AbstractJcrItem.

  • info.magnolia.dam.jcr.JcrFolder: JCR implementation of the Folder definition. Extends AbstractJcrItem.

  • info.magnolia.dam.jcr.AssetNodeTypes: Constants and convenience methods for asset node types.

    • Asset: Represents the node type mgnl:asset. Fields: caption, comment, copyright, description, language, master, name, provider_type, subject, title, type.

    • AssetResource: Represents the resource node bound to an Asset. Fields: data, extension, filename, height, mimetype, name, ressource_name, size, width.

  • info.magnolia.dam.jcr.JcrItemNodeTypePredicate: Predicate filtering asset nodes (folders and assets) based on the following Node.getPrimaryNodeType():

    • AssetNodeTypes.Asset.NAME

    • NodeTypes.Folder.NAME

Extends info.magnolia.jcr.predicate.AbstractPredicate<javax.jcr.Node>.

  • info.magnolia.dam.jcr.DamConstants: Defines commonly used constants for the DAM JCR module. Fields: default_jcr_provider_id, workspace.

Custom JCR asset properties

In order to access a custom property defined under a JCR Asset node, info.magnolia.dam.jcr.JcrAsset provides a public getter:

/**
    * JcrAsset specific implementation that lets you access a property value linked to an asset node.
    * This requires an open session.
        *
       * @return property value Object if the property exists or null otherwise.
       */

    public Object getProperty(String propertyName) {
        return PropertyUtil.getPropertyValueObject(getNode(), propertyName);
    }

JCR metadata classes

  • info.magnolia.dam.jcr.metadata.JcrDublinCore: JCR implementation of DublinCore. Fields: dc_contributor, dc_coverage, dc_creator, dc_publisher, dc_relation, dc_source, dc_subject, dc_type. Methods: getContributor, getCoverage, getCreated, getCreator, getDate, getDescription, getFormat, getIdentifier, getLanguage, getModified, getPublisher, getRelation, getRights, getSource, getSubject, getTitle, getType.

  • info.magnolia.dam.jcr.metadata.JcrMagnoliaAssetMetadata: Base JCR implementation of the MagnoliaAssetMetadata definition. Methods: getHeight, getWidth.

Accessing the DAM API

To access AssetProviderRegistry from your custom module, adapt your pom and module descriptor XML files to include a dependency. You can simply inject or use components to access AssetProviderRegistry.

    private final AssetProviderRegistry providerRegistry;
    // By Injection
    @Inject
    public MyFunctions(AssetProviderRegistry providerRegistry) {
        this.providerRegistry = providerRegistry;
    }
    // Or using Components
    public void myCustomMethod() {
        this.providerRegistry = Components.getComponent(AssetProviderRegistry.class);
    }

DAM templating functions

As a template developer, have a look at damfn, a set of methods that can be used in FreeMarker scripts to easily access assets, asset renditions, and so on.
