Twin-column field - 5 UI

Deprecated

This twin-column field definition has been deprecated since Magnolia 6.0. It is part of the Magnolia 5 UI framework.

For the updated implementation, see Twin-column field for Magnolia 6 UI instead.

TwinColSelectFieldDefinition renders two boxes side by side. Available items are in the left box and selected items in the right box. To select an item, move it from left to right.

This control is useful for selecting large sets of items such as group and role memberships. You can find an example in the Security app.

class: info.magnolia.ui.form.field.definition.TwinColSelectFieldDefinition

fieldType: twinColSelect

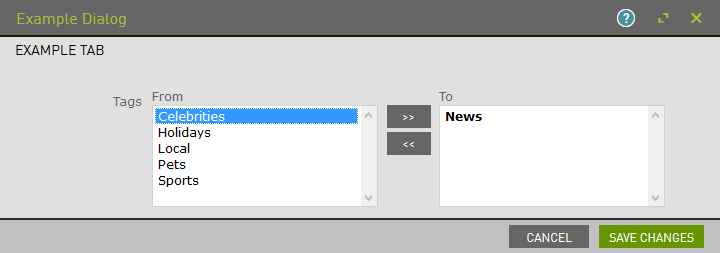

Example of a twin column dialog

Twin-column field properties

Simple twin-column field definition:

form:
 tabs:
    - name: tabTags
      label: Tags
      fields:
        - name: tags
          fieldType: twinColSelect
          type: String
          label: Tags
          options:
            - name: news
              label: News
              selected: true
            - name: sports
              label: Sports
              value: sports
            - name: celebrities
              label: Celebrities
              value: celebrities

Referencing fields shortcut info - 5 UI

See Referencing fields for further information.

Common select field properties - 5 UI

The select, option group and twin-column fields share this general configuration pattern, but they also have their own additional properties.

<field name>

required

Name of the field.

options

optional

Parent node for the selectable options. If not set, the field generates options from the repository path.

<option name>

Name of the option.

value

required

Value saved to the repository when selected.

name

optional, default is the parent node name

Name of the node where the selected value is stored. If not set, the name of the parent node is used.

label

optional

Option label displayed to the user.

iconSrc

optional

Displays an image next to the option. Value is a path to the image.

selected

optional, default is false

Pre-selects the option.

labelProperty

optional, default is `label`

Reads option labels from a different property. Set to the name of your custom label node.

path

optional

Path to existing options as opposed to defining options in the current definition. Only valid with a field defined in XML.

Alternatively, option definitions can be placed in a YAML file referenced via include.

repository

optional, default is `RepositoryConstants.CONFIG`

When using a path to existing options, workspace to look in.

sortOptions

optional, default is true

By default, option labels are sorted alphabetically. When false, sorts the options by JCR node order.

comparatorClass

optional, default is `info.magnolia.ui.form.field.factory.SelectFieldFactory.DefaultOptionComparator`

When sortOptions set to true, sorts the available options.

valueProperty

optional, default is value

Reads option values from a different property. Set to the name of your custom value node.

+ Properties specific to the twin-column field.

Property Description

<field name>

Name of field.

leftColumnCaption

optional, default is From

Text displayed above the left column. Typically retrieved from a message bundle.

rightColumnCaption

optional, default is To

Text displayed above the right column. Typically retrieved from a message bundle.

Common field properties - 5 UI

Property Description

fieldType`or `class

required

Defines the field type via either a field alias name or a fully-qualified field definition class name. See Field definition: Field types.

To check the correct form of the name, use the Definitions app.

defaultValue

optional

Pre-filled default value displayed in the field. The value can be overwritten by the user. Use alphanumeric characters.

Applied only when creating a new item, not for already existing items.

description

optional

Help text displayed when the user clicks the help icon. The value can be literal or retrieved from the message bundle with a key. Use alphanumeric characters in literal values. Not applicable to the static field.

i18n

optional, default is false

Enables i18n authoring support which allows editors to write foreign-language or regionally targeted content. A two-letter language identifier (en, de, fr etc.) is displayed on controls where i18n is set to true.

i18nBasename

optional, default is the message bundle defined in the dialog definition_

Message bundle such as com.example.messages for localized field labels. You can set this property in the parent dialog, form or tab definition. Child fields will inherit the bundle.

label

optional

Field label displayed to editors. The value can be literal such as Product name or retrieved from the message bundle with a key such as products.product.label. Use alphanumeric characters in literal values.

If you do not provide the property, Magnolia will fall back to a generated i18n key and display the key in the UI.

If you do not want a label at all, define the property and set its value to a blank space such as label: " " in YAML.

name

optional, default is the name of the field’s parent node_

Name of the node where the value is saved. The name jcrName is reserved. Use alphanumeric characters.

placeholder

optional

Placeholder text to be displayed when the field is empty. The value is i18n-able.

Applicable to text, link and combobox fields.

readOnly

optional, default is false

Makes the field uneditable. Adding this property has the same effect as creating a static field.

required

optional, default is false

Makes the field required (mandatory). An asterisk is displayed next to the field label. See also Checking for null values.

requiredErrorMessage

optional, default is This field is required

Error message displayed when required is true and the user saves an empty field. The value can be literal or retrieved from the message bundle with a key such as validation.message.required.

styleName

optional

Adds one or more style names to this component. Multiple styles can be specified as a space-separated list of style names such as checkbox disabled. The style name will be rendered as an HTML class name, which can be used in a CSS definition. The class name is added to the field by calling the Vaadin method addStyleName.

transformerClass

optional

Property transformer classes define how field values are stored in the repository. Each field has a default transformer class. You don’t need to define a class unless you want to override the default. The value is a fully-qualified class name.

Complex field definitions may define a different default transformer in their constructor. See Transforming field values for more.

type

optional, most fields set a default value automatically

JCR property type of the stored value such as String, Boolean, Date or any other supported and defined data type.
