Campaign Publisher module

Content management Unbundled: Extension 2.1.0-beta1

Edition

DX Core

License

MLA

Issues

MGNLCAMPU

Maven site

Campaign Publisher

Magnolia Campaign Publisher 2.1.0 is in beta with Magnolia 6.2.

Campaign Publisher allows managers and team members to manage all elements of online campaigns in a single app. You can add content to campaigns directly in the app where the content is managed. By default, the Add to campaign action is available in the Pages and Assets apps but can also be added to any content app.

At a glance, you can see a campaign’s readiness and publication status of each item in the Campaign Publisher app. Team members can preview each campaign item and publish the entire campaign in a single click.

The Campaign Publisher module and app are compatible with Pages and Assets apps (6 UI).

There is an ongoing effort to convert the Campaign Publisher module and app to the entire 6 UI framework. You can follow the progress on the following ticket: MGNLCAMPU-87.

Installing with Maven

Bundled modules are automatically installed for you.

If the module is unbundled, add the following to your bundle including your project’s <dependencyManagement> section and your webapp’s <dependencies> section. If the module is unbundled but the parent POM manages the version, add the following to your webapp’s <dependencies> section.

<dependency>
  <groupId>info.magnolia.campaign</groupId>
  <artifactId>magnolia-campaign-publisher</artifactId>
  <version>2.1.0-beta1</version> (1)
</dependency>

1	Should you need to specify the module version, do it using `<version>`.

Configuration

From 2.0.1, the Add to campaign action is by default available only in UI 6 Pages and Assets apps, but can be added to other content apps as well.

App Module name App name Config source

App	Module name	App name	Config source
old Pages app	pages	pages	`jcr`
6 UI Pages app	pages-app	pages-app	`yaml`
old Assets app	dam-app	assets	`jcr`
6 UI Assets app	dam-app-core	dam	`yaml`

old Pages app

pages

jcr

6 UI Pages app

pages-app

yaml

old Assets app

dam-app

assets

jcr

6 UI Assets app

dam-app-core

dam

yaml

Using the `Add to campaign` action in other content apps

Generally, there are two ways of adding the Add to campaign action button to your content app.

The first one is by adding a decoration. In the Resource app, go to /campaign-publisher/decorations/ and add the Add to campaign action decoration.

The Add to campaign action is available by default in the Pages and Assets apps in the 6 UI framework from Campaign Publisher 2.0.1 or later.

Below are the definitions for adding the action in the Pages and Assets apps.

Pages app
Assets app

/campaign-publisher/decorations/pages-app/apps/pages-app.yaml

subApps:
  browser:
    actions:
      selectCampaignAction:
        class: info.magnolia.campaignpublisher.ui.action.AddCampaignActionDefinition
    actionbar:
      sections:
        - name: crud
          groups:
            - name: publish
              items:
                - name: selectCampaignAction

/campaign-publisher/decorations/dam-assets-app/apps/dam.subApps.yaml

jcrBrowser:
  actions:
    selectCampaignAction:
      class: info.magnolia.campaignpublisher.ui.action.AddCampaignActionDefinition
  actionbar:
    sections:
      asset:
        groups:
          publish:
            items:
              - name: selectCampaignAction
      folder:
        groups:
          publish:
            items:
              - name: selectCampaignAction

The second way is in the app definition. Under actions, define class as info.magnolia.campaignpublisher.ui.action.AddCampaignActionDefinition. You can also use the preconfigured selectCampaignAction action.

For more information about action definitions and decorations, see Action definition and Definition decorator file location.

Setting permissions

The Campaign Publisher app belongs to the Edit app group that has no restrictive permissions configured in the app launcher layout.

To add content to campaigns and creating and managing campaigns in the Campaign Publisher app, editors and publishers need read/write permissions in the campaigns workspace. Only superuser has these permissions by default.

To provide users with the required permissions, create a new role in the Security app with the permissions in the table below and assign it to the user or group.

Access control lists

Workspace

Permission

Scope

Path

Campaigns

Read/Write

Selected and sub nodes

/

If permissions to the underlying content are restricted, the user will still not be able to access or preview the content in the app in which the content is managed.

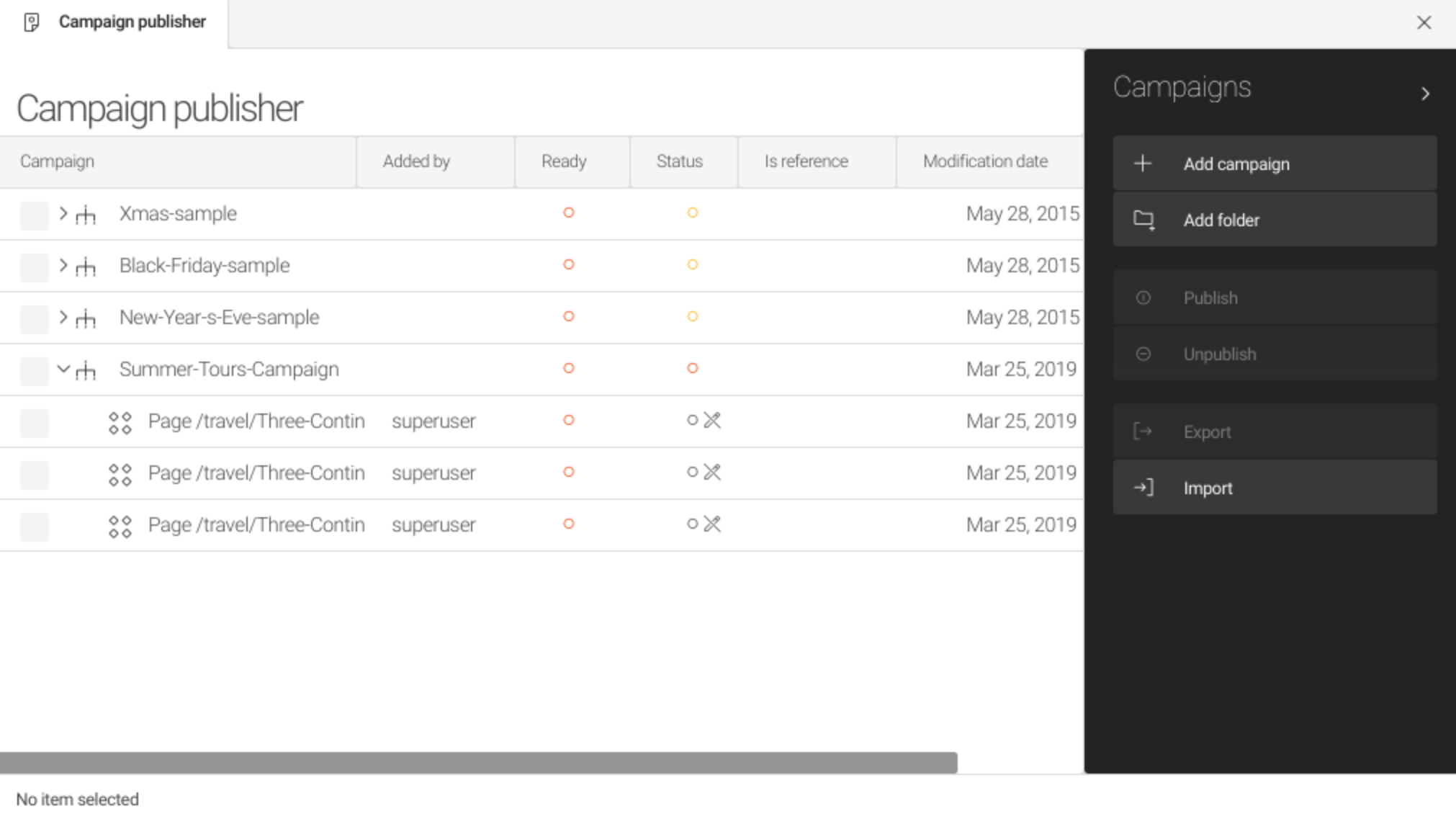

Here’s what example Travel Demo tour editor Tina, who does not have access to the Pages app, sees in the Campaign Publisher app. The activation status indicator and Preview action are disabled.

Campaign publisher app with the action bar seen as by user Tina

Settings for actions related to an entire campaign

Content types to add

Only pages and their subpages can be added from the Pages app. For the Assets app and other content apps, you can add both items (for example, assets and contacts) and folders. What can be added is specified by the childNodeTypesToAdd property, as shown in the example decorations below.

Pages app
Assets app
Contacts app

/campaign-publisher/decorations/pages-app/apps/pages-app.yaml

childNodeTypesToAdd:
  website:
    - mgnl:page

/campaign-publisher/decorations/dam-assets-app/apps/dam.subApps.yaml

childNodeTypesToAdd:
  dam:
    - mgnl:asset
    - mgnl:folder

/campaign-publisher/decorations/contacts/apps/contacts.yaml

childNodeTypesToAdd:
  contacts:
    - mgnl:contact
    - mgnl:folder

Node handling during import

The uuidBehavior flag defines how incoming (deserialized) node identifiers are handled. Subgraphs aggregate application-specific data for quick access to frontend developers and are updated during the import. They are exposed to developers via GraphQL.

There are four options:

ImportUUIDBehavior.IMPORT_UUID_CREATE_NEW: Incoming nodes are assigned newly created identifiers upon addition to the workspace. As a result, identifier collisions never occur.
ImportUUIDBehavior.IMPORT_UUID_COLLISION_REMOVE_EXISTING: If an incoming node has the same identifier as an existing node in the workspace, then the existing node and its subgraph are removed from wherever it may be in the workspace before the incoming node is added.

This can result in nodes disappearing from locations in the workspace that are different from the location where the incoming subgraph is written.

ImportUUIDBehavior.IMPORT_UUID_COLLISION_REPLACE_EXISTING: If an incoming node has the same identifier as an existing node, then the existing node is replaced by the incoming node in the same position as the existing node.

This may result in the incoming subgraph being disaggregated and spread to different locations in the workspace. Consequently, no node may be added as a child of parentAbsPath. Specifically, this could happen if the topmost element of the incoming XML has the same identifier as an existing node elsewhere in the workspace.

ImportUUIDBehavior.IMPORT_UUID_COLLISION_THROW: If an incoming node has the same identifier as an existing node in the workspace, then an ItemExistsException is thrown.
