Swift publication
|
This module is in beta state. If you want to learn more, contact us at swift.publishing@magnolia-cms.com for information on availability and technology previews. |
Swift publication is installed by the Swift publication module and offers a more scalable and efficient method for versioning and publishing content than the default DX Core publishing workflow. It is delivered as a standalone enterprise module that can be used as a replacement for DX Core publishing. It requires the provisioning of additional infrastructure (an external version store). DX Cloud users can use it out of the box, while on-premises users must provision the external infrastructure themselves.
Architecture

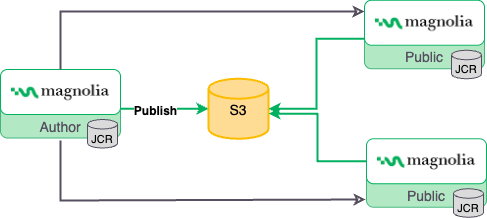

Swift publication stores versions in an external version store, such as S3. You can use REST to communicate between author and public instances. When an author publishes changes, the changes are sent to and stored in the external version store. The public instances receive notifications via REST and fetch the corresponding version from the version store.
Advantages
This architecture provides the following advantages over the default DX Core publication process:
-
There is less load on the author instance as versions are maintained externally
-
Better and more flexible scalability regarding the size and frequency of publications, as well as the number of public instances
-
Improved resilience and easier failure recovery
-
Simple transactionality model (eventual consistency amongst public instances)
|
These benefits come with the added complexity of provisioning, configuring, and maintaining the external version store. For smaller sites, you might not consider the extra effort justified. |
Comparing publishing methods
A comparison table for the two publication options outlined above is shown below.
| DX Core publishing | Swift publication | |
|---|---|---|
Workflow |
Four-eye workflow: it can be disabled if you don’t have separate editor and publisher roles. The four-eye workflow is primarily used in the Pages app. |
Swift publication can be used as a replacement for DX Core publishing. Publication is carried out asynchronously and is shown by an |
Versioning |
Versions are managed internally within the author instance. Content is copied to a JCR version workspace on the author instance when published. |
Swift publication stores versions in an external version store (for example, S3). This means that when changes are published, the respective versions are sent to the external store, reducing the load on the author instance. Public instances then take the changes from the external store. |
Performance |
The load can impact the performance since all versions are maintained on the author instance. This can lead to slower publishing processes, especially for larger content repositories. |
The architecture allows for better scalability regarding the size and frequency of publications and the number of public instances. |
Infrastructure |
No additional infrastructure required for publishing. |
Swift publication requires additional infrastructure, in particular an external version store (S3). |
Authentication and security |
Data is transferred through the instances using public-key cryptography. |
For S3, you must specify security credentials to authenticate and authorize your requests. |
