Sharing light modules - advanced topics

Each module contains its own build pipeline which is run when the npm run build command is executed. This build pipeline processes the source files provided in the _dev directory and typically generates files in the webresources directory.

Magnolia does not recommend any specific build for a module.

This is because there exist many rapidly changing front-end tools. We do not want to limit users to a single build pipeline at the project level that all modules would have to adhere to. With a module-level build, each module has the freedom to select its own build pipeline and is sure that it will build properly, no matter the project environment.

The npm package.json prepublish script should run npm run build so that the build pipeline will be run whenever the package is published. This ensures that all packages on npm are always `built' and ready to use as light modules.

The _dev directory with all its source files, and the build config files like .babelrc should be excluded from the built npm package. This is accomplished by listing them in the standard .npmignore file.

As a best practice, consider including any built files in a .gitignore file. This ensures that devs using the project will get a build based on the latest versions, eliminates redundancy, and serves to document what is being generated.

A light module will often rely on functionality provided by other npm packages, typically javascript or css. For example, a component that exposes the features of a js library like chart.js to content authors. To be DRY, the light module source control project (ie github) should not include those libraries.

Based on the same module-level build introduced above, a module should declare those projects as npm dependencies in its package.json. The build pipeline must include a step to either generate new resources (js, css, etc) based on those dependencies, or simply copy resources from those dependencies - and place them in the webresources directory.

Big popular libraries like jquery and angular should usually not be brought in via npm dependencies. Since many components are likely to depend on them, and they are available via CDN, a project developer will usually prefer to manage those libraries by hand.

Note that it is the modules job to generate/copy the proper resources in the webresources directory, but not to handle how they get into the web page. This is left to the project developer so that they can use the web resources strategy that makes the most sense for their project (resfn, theme, include, etc).

A light module can contain unit tests for any custom javascript functionality using standard js testing frameworks.

To test magnolia rendering, integration tests can easily be provided to test a demo page for the presence of expected DOM. These tests can be written with the cheerio library which leverages jQuery for easily selecting the contents of the html DOM. For example, a demo page could contain the same component, but configured via the dialog in 4 different ways. A test could check each rendered version for expected HTML elements. You could use more sophisticated approaches than simple DOM tests, such as selenium to test user interactions with your components.

Tests are especially valuable for open source projects. They make it easier for people to contribute to your project, because they (and you) will see if they have broken anything.

Steps to create a test of magnolia rendering (illustrated in the above project):

Additional details: Testing Light Modules for Frontend Developers

A light project consists of a package.json file which declares all of the light modules in the project as npm dependencies, and any required build pipeline. A light project is an optional concept.

For each shared light module, we recommend a module-level build. However, on a project level, you may want to further process the contents of all modules in your project. The most common use case is that you want to concatenate or minify the web resources from all the modules into a fewer number of resources. Projects often have only app.js and styles.css files.

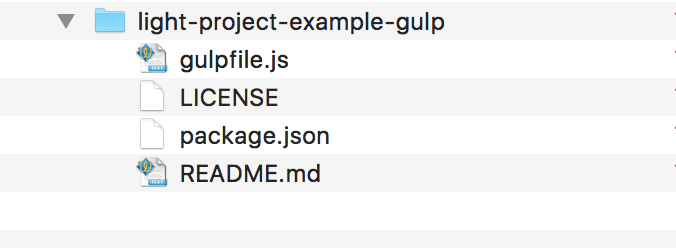

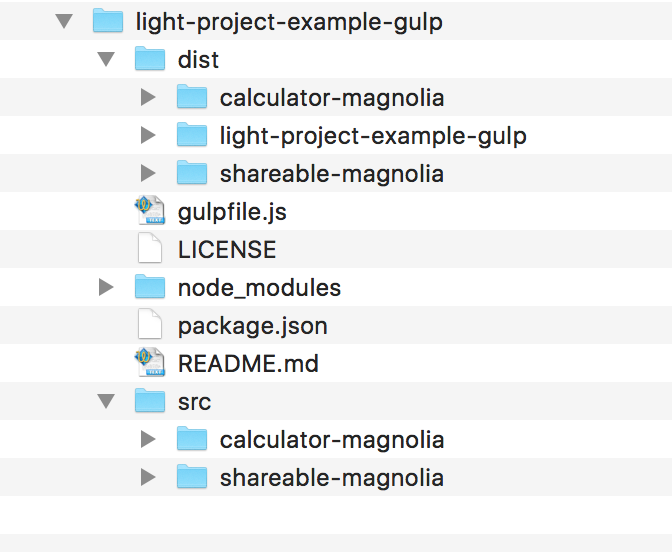

For a light project setup we suggest the following directory structure:

Examples:
