Form definition - 5 UI

Deprecated

This form definition has been deprecated since Magnolia 6.0. It is part of the Magnolia 5 UI framework.

For the updated implementation, see Form definition for Magnolia 6 UI instead.

The form definition defines the tabs and fields in a dialog.

Form properties

Simple form definition with two tabs, a title (plain text) and text (rich text) and a link field to link to an asset from DAM.

File Tree

<my-module>/dialogs/components/<dialog name>.yaml
form:
  tabs:
    - name: tabText
      label: Text
      fields:
        - name: title
          fieldType: text
          label: Title
        - name: textEditor
          fieldType: richText
          label: Text editor
    - name: tabImage
      label: Image
      fields:
        - name: image
          fieldType: link
          targetWorkspace: dam
          appName: assets
          identifierToPathConverter:
            class: info.magnolia.dam.app.assets.field.translator.AssetCompositeIdKeyTranslator
          contentPreviewDefinition:
            contentPreviewClass: info.magnolia.dam.app.ui.field.DamFilePreviewComponent
Property Description

<dialog name>

required

Arbitrary node name. Typically matches the template it edits. For example the component definition node and dialog definition node for a link component could both be named link. This is not required and one dialog can be used for more than one template.

form

required

Contains the form definition which defines the tabs and fields where content is entered.

tabs

required

Contains the tabs within the form. Every dialog needs at least one tab.

<tab name>

required

The name of the tab. Arbitrary node name. Use a name that describes the content of the tab like imageTab or addressTab.

fields

required

Contains the fields within the tab. See Field definition for more.

<field name>

required

Arbitrary field name. Use a name that describes the field like title or headline.

class

or

fieldType

required

Field definition class (if using class, see Available field definition classes and List of fields for more) or field definition name (if using fieldType). To view the field names, look at the Definitions app.

<other field properties>

optional

See Common field properties for a list of optional properties that can be used with all fields.

required

Each field definition class supports its own properties. See List of fields for properties and example configurations of each field.

label

optional

A label that appears in the tab.

Please note that if there is only a single tab defined for the form, the tab bar is hidden, form content moved directly under the form header and the label is not rendered.

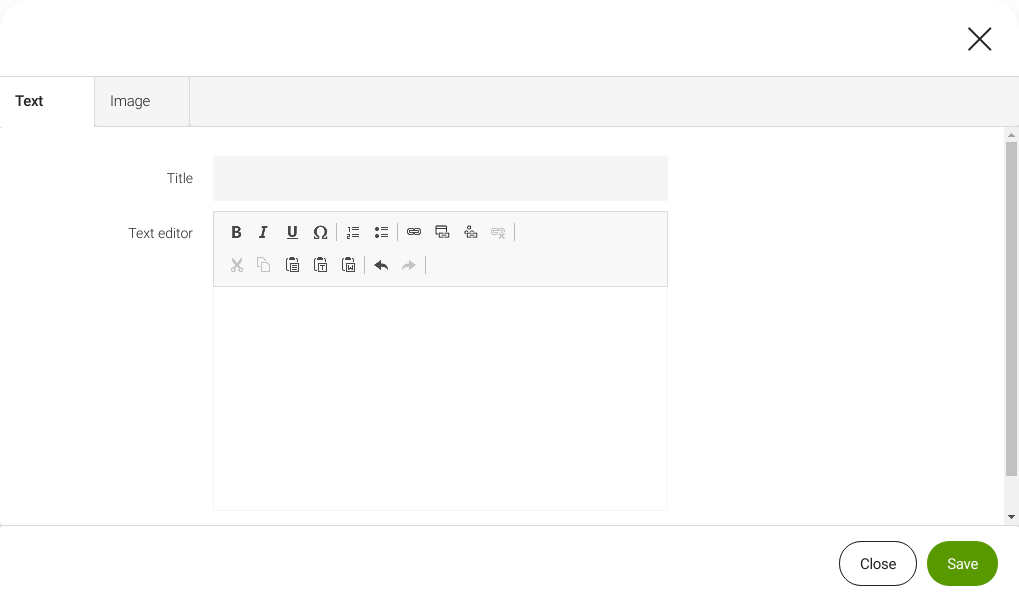

Text form

Field definition classes - 5 UI

fieldType class

text

info.magnolia.ui.form.field.definition.TextFieldDefinition

richText

info.magnolia.ui.form.field.definition.RichTextFieldDefinition

date

info.magnolia.ui.form.field.definition.DateFieldDefinition

hidden

info.magnolia.ui.form.field.definition.HiddenFieldDefinition

link

info.magnolia.ui.form.field.definition.LinkFieldDefinition

code

info.magnolia.ui.form.field.definition.CodeFieldDefinition

multiValue

info.magnolia.ui.form.field.definition.MultiValueFieldDefinition

password

info.magnolia.ui.form.field.definition.PasswordFieldDefinition

select

info.magnolia.ui.form.field.definition.SelectFieldDefinition

optionGroup

info.magnolia.ui.form.field.definition.OptionGroupFieldDefinition

twinColSelect

info.magnolia.ui.form.field.definition.TwinColSelectFieldDefinition

checkbox

info.magnolia.ui.form.field.definition.CheckboxFieldDefinition

composite

info.magnolia.ui.form.field.definition.CompositeFieldDefinition

switchable

info.magnolia.ui.form.field.definition.SwitchableFieldDefinition

static

info.magnolia.ui.form.field.definition.StaticFieldDefinition

basicUpload

info.magnolia.ui.form.field.definition.BasicUploadFieldDefinition

damUpload

info.magnolia.dam.app.ui.field.definition.DamUploadFieldDefinition

collapsibleComposite

info.magnolia.editor.app.field.CollapsibleCompositeFieldDefinition

expandingText

info.magnolia.editor.app.field.ExpandingTextFieldDefinition

Your Magnolia installation may contain more fields depending on the installed modules. Use the Definitions app to see all available field types.
