Action bar definition

An action bar organizes actions into sections and groups. The bar is typically displayed on the right hand side of an app. In content apps, the browser subapp has an action bar that allows the user to manage content items (add, edit or delete).

The action bar also defines availability rules that determine which section of the action bar is displayed to the user. For example, when the user selects a content item, you want to only display actions that are relevant for that item.

The action bar references actions that are defined elsewhere. This separation allows you to define an action once and use it in many places, not only in the action bar.

Example definition

Action bar in the Contacts app:

browser:
  actionbar:
    defaultAction: editContact
    sections:
      - name: root
        # group definition
      - name: deletedContact
        # group definition
      - name: deletedFolder
        # groups definition
      - name: contact
        groups:
          - name: addActions
            items:
              - name: addContact
              - name: confirmDeleteContact
          - name: editActions
            items:
              - name: editContact
              - name: renameContact
          - name: activationActions
            items:
              - name: activate
              - name: deactivate
          - name: importExportActions
            items:
              - name: export
          - name: versionsActions
            items:
              - name: showVersions
              - name: restoreVersion
        availability:
          nodeTypes:
            - mgnl:contact

Action bar in the Contacts app

Action bar properties

Property Description

actionbar

required

Action bar configuration.

     sections

required

Sections defined in the bar.

         <section name>

required

Name of the section. Name your sections after what the user has selected, such as folder when a folder is selected.

             groups

required

Actions that belong together. Separated by horizontal lines in the action bar.

                 <group name>

required

Name of the group.

                     items

required

Node containing the action names.

                         <action name>

required

Name of the action. Must be the same as the name defined in Dialog definition.

             availability

optional

Defines whether the section is displayed to the user. Typically depends on what type of node the user has selected.

             label

optional

Green text displayed to users in the action bar.

         defaultAction

optional

Name of the action executed when the user double-clicks an item.

Action bar availability

Action bar availability defines whether a particular section of the action bar is available.

Action bar availability is different from action availability where availability rules are defined on an individual action level and apply to each use of the action.

For example, in the action bar configuration in the Contacts app:

  • Actions in the root section appear on the root node only. The user sees the Add contact, Add folder and Import actions defined in the groups in the root section.

  • Actions in the contact section appear on selection of a mgnl:contact node type.

  • Actions in the deletedContact section appear on selection of a mgnl:contact node type, but the IsDeletedRule rule class limits action availability to the Publish deletion and Restore previous version actions when a contact has been marked for deletion. This rule returns true if the item is a node and has the mgnl:deleted mixin type.

actionbar:
  defaultAction: editContact
  sections:
    - name: root
      groups:
        # group definitions
      availability:
        nodes: false
        root: true
    - name: deletedContact
      groups:
        # group definitions
      availability:
        nodeTypes:
          - mgnl:contact
        rules:
          - name: isDeletedRule
    - name: deletedFolder
      # groups definition
    - name: contact
      groups:
        # group definitions
      availability:
        nodeTypes:
          - mgnl:contact

Availability properties

Property Description

<section name>

required

Name of the section.

     availability

required

Defines the availability configuration for the section.

         access

optional

Section is available if the current user has one of the listed roles.

             roles

required

Section is available to users assigned the list of roles.

                 <role>

required

Name of the role that is permitted to execute the action. Add one property for each role.

         nodes

optional, default is true

Section is available if the selected item is a node.

         nodeTypes

optional

Section is available if the selected item is one of the node types listed.

             <node type>

required

Valid node type such as mgnl:folder.

         rules

optional

Section is available if the selected item matches every availability rule class.

             <rule name>

required

It gives the node a name that describes the rule class. One node for each rule, and the node name is arbitrary.

                 class

required (unless $type is used)

Action availability definition class. The class must implement the AvailabilityDefinition interface. Set the value to the fully qualified class name.

                 $type

You can use this as a shortcut for class if the definition class is annotated with info.magnolia.ui.api.availability.AvailabilityRuleType. The proper value is defined by the annotation.

                 implementationClass

required

The class that contains custom logic to check if the action is permitted on the selected item and implements info.magnolia.ui.availability.rule.AvailabilityRule. Your custom class must extend info.magnolia.ui.availability.rule.AbstractAvailabilityRule. A default implementation class is typically hard-coded in the definition class. You only need to add this property if you want to override the default implementation.

         root

optional

Section is available at the workspace root level if true.

         folder

optional, default is null

Action is available for folders only if true, and for non-folder content only if false. When this property is not specified, the action is available for both folders and non-folder content.

This option is for CDS content and is not supported for JCR content. Please see the nodeTypes option and use mgnl:folder node type to specify availability for folders in JCR.

         properties

optional, default is false

Section is available if the selected item is a property.

         multiple

optional, default is false

Defines whether the action is available for multiple items.

For more information, see Actions on multiple items.

         writePermissionRequired

optional, default is false

Set to true if the action requires write permission on the currently selected node. The action will be disabled if the user does not have write permission.

Action bar structure

The structure of the action bar differs from app to app.

Here’s an example of the action bar in the Contacts app.

  • No contact selected

  • Contact selected

  • Contact deleted

With no contact selected.

Action bar without any action selected

When a contact is selected.

Action bar when a contact is selected

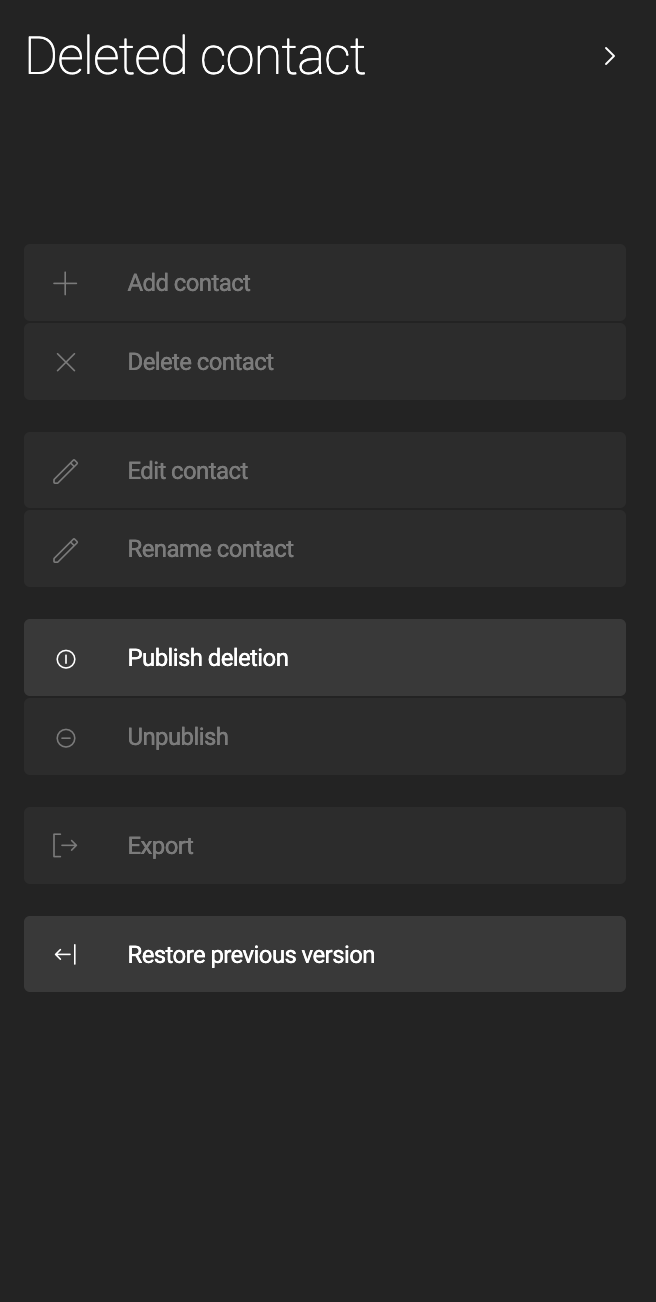

After a contact is deleted.

Action bar after a contact is deleted
