Caching arbitrary objects

This page explains how to cache arbitrary objects in Magnolia. You can cache basically every object. This takes caching well beyond page and page fragment caching.

Required modules

The functionality for caching arbitrary objects is provided by at least two modules.

Things to note about arbitrary object caching

Speed up services

The main reason to cache objects is to serve data faster and to save resources (cpu, memory, network load, etc.). For instance, use object caching when there is heavy request on a Magnolia service which must provide data from a remote source.

Assure data validity

When delivering cached data you will probably need a mechanism to ensure cached data is valid and not outdated! How to handle this depends on the use case.

Restrict the lifetime of cached objects

When putting objects to the cache you can restrict their lifetime. In this case, instead of checking the validity of cached objects, you can simply let them expire over time.

Configure the cache

Magnolia allows to configure a cache factory specifically for each cache. For example you could have a specific configuration for fooBarCache. When no specific configuration is defined, the default factory configuration is used.

Configuration differs depending on which version of Ehcache you use.

Ehcache

This is an example of how to configure a cache using Ehcache 2.

Extend the default factory and override the persistence strategy with none. This persistence strategy allows to cache non-serializable objects.

Configuring a cache

The /modules/cache/config/cacheFactory/caches/fooBarCache node defines the cache name. fooBarCache is the name of the cache which was also used above when acquiring the Cache object within Java code.

Ehcache3

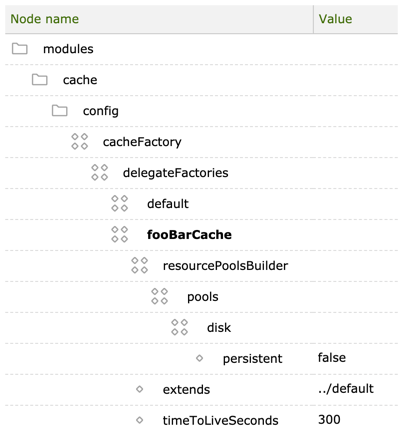

This is an example of how to configure a cache using Ehcache 3. On the Ehcache 3 module page you will find documentation of all configuration options.

Extend the default factory and override the persistence strategy for disk set to the value false. This persistence strategy allows to cache non-serializable objects.

Configuring a cache

The /modules/cache/config/cacheFactory/delegateFactories/fooBarCache node defines the cache name. fooBarCache is the name of the cache which was also used above when acquiring the Cache object within Java code.

Get the cache

Achieve an instance of info.magnolia.module.cache.Cache. This is your cache to operate on. Give it a name which must be unique within the system.

Example:

import javax.inject.Inject;
import javax.inject.Provider;

import info.magnolia.module.cache.Cache;
import info.magnolia.module.cache.inject.CacheFactoryProvider;

public class MyClass {
    private final Provider<CacheFactoryProvider> cacheFactoryProvider;

    @Inject
    public MyClass(Provider<CacheFactoryProvider> cacheFactoryProvider){
        this.cacheFactoryProvider = cacheFactoryProvider;
    }
    public void fooBar(){
        Cache cache = cacheFactoryProvider.get().get().getCache("fooBarCache");
    }
}

  • Lines 2, 4-6: Inject info.magnolia.module.cache.inject.CacheFactoryProvider and keep it as a final member of your class.

  • Line 9: Fetch info.magnolia.module.cache.Cache with its name. The cache provider will always return the same instance once it has been created.

All subsequent actions - adding, reading and removing objects - are applied on this Cache object.

Cache Interface

info.magnolia.module.cache.Cache

Cache.java: Cache interface: An interface around 3rd party or custom cache libraries.

It is up to client components to decide what they use as keys and values.

Put to cache

info.magnolia.module.cache.Cache knows two methods to append objects.

void put(Object key, Object value);

void put(Object key, Object value, int timeToLiveInSeconds);
Argument Notes

key

required

The identifier of the object to cache

value

required

The object to cache

timeToLiveInSeconds

optional

The lifetime of the cached object in seconds.

Tip: The lifetime also can be configured globally, and you can configure a flush policy to clear the cache when some condition is met, or you may want to delete cached objects programmatically (see #remove and #clear below).

Example:

public class MyClass {
    public Object put(Object key, Object value){
        Cache cache = cacheFactoryProvider.get().get().getCache("fooBarCache");
        cache.put(key, value);
        return value;
    }
    public Object put(Object key, Object value, int timeToLiveInSeconds){
        Cache cache = cacheFactoryProvider.get().get().getCache("fooBarCache");
        cache.put(key, value, timeToLiveInSeconds);
        return value;
    }
}

Retrieve from cache

There are two methods to retrieve an object from cache.

Object get(Object key);

Object getQuiet(Object key);

get

Returns an object from the cache and blocks all the requests for the same key.

Example:

public JsonNode getData(String productId) throws Exception {
    Cache cache = cacheFactoryProvider.get().get().getCache(CACHEKEY);
    try {
        JsonNode jsonNode = (JsonNode) cache.get(productId);
        if (jsonNode != null) {
            return jsonNode;
        } else {
            jsonNode = readJson(productId);
            cache.put(productId, jsonNode);
            return jsonNode;
        }
    } catch (Exception e) {
        cache.put(productId, null); //unblock cache!
        throw e;
    }
}

Use #get when you are unsure whether the desired object is already cached. If the object is not yet cached, you should acquire it by other means and add it to the cache.

It is good practice to call #get and #put within the same associated try-catch-finally block for the same cache key.

If there is no object for a key, add null to the cache anyway. This way you can ensure that the service doesn’t try to read data for a key without an existing value more than one time

getQuiet

Returns an object from the cache but does NOT block requests for the same key.

Use #getQuiet to acquire objects which are already cached.

This method is used more to observe or manage cached objects than to fetch a specific object. The Magnolia Cache Browser app is using #getQuiet, for instance.

Example:

public List getCachedObjects() {
    List<Object> cachedObjects = new ArrayList<>();

    Cache cache = cacheFactoryProvider.get().get().getCache(NAME_OF_CACHE);
    Collection<Object> keys = cache.getKeys();

    for (Object key : keys) {
        Object value = cache.getQuiet(key);
        if (value != null) {
            cachedObjects.add(value);
        }
    }

    return cachedObjects;
}

Line 8: Uses #getQuiet

Delete from cache

Remove a single item

Cache cache = cacheFactoryProvider.get().get().getCache("fooBarCache");
cache.remove("fb-90270240-xyz");

Clear complete cache

clear deletes all items of a specific [.inlineBean]#info.magnolia.module.cache.Cache, which is identified by its name.

cacheFactoryProvider.get().get().getCache("fooBarCache").clear()
