Upgrading to Magnolia 6.3.1 and later

If you are upgrading to 6.3.x for the first time, you must also read Upgrading to Magnolia 6.3. The information in this page applies to 6.3.1 and later.

The $type: “filteringWorkbench” property on the workbench configuration, introduced in 6.3.0 for the Pages and Assets apps, is deprecated in 6.3.1 and later.

In 6.3.1 and later, in-app search and filter functionality becomes the default for all browser subapps as part of the standard workbench definition.

This change has the following impact on your browser subapps:

The search field is enabled by default in all apps. If your custom browser subapp doesn’t support search, disable the search field by setting the searchEnabled property to false.
If you don’t have workbench filters configured, the system:

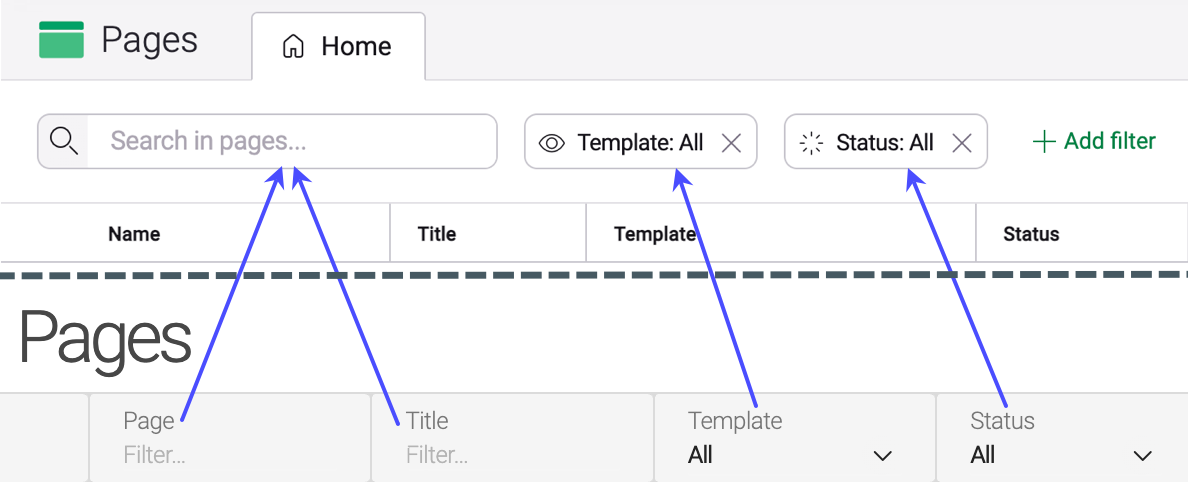

- Converts combobox fields used as filters in column headers into dropdown filters.
- Converts all text fields into the default search field. For example, in the Pages app the Name (previously Page) and Title column fields become searchable using the default search field.
If you have workbench filters defined and an existing filterComponent definition in a column definition, the column filter remains as it is. No conversion is executed. Column filter and workbench filter definitions can be defined and used at the same time for the time being even though the filterComponent is deprecated.
Only one view type can be displayed in a browser subapp.

The search field and filters are applied to the first view type configured in your app. The view type switcher disappears. If you want to change the view displayed, change the order of the view types defined in your .yaml config (or remove the view types you don’t want).

The Name column has changed: the titleColumn column type is replaced by componentColumn (info.magnolia.ui.contentapp.configuration.column.ComponentColumnDefinition) that supports two rows in the column. Therefore content type-based apps are automatically created with the componentColumn type.

No default or fallback icon is provided anymore for nodes.

The icon configuration has changed.

Click to see examples of configuration updates for displaying icons in columns

Example of a custom Events app events.yaml

       contentViews:
        tree:
          columns:
            name:
# new in 6.3.1+:
              nodeTypeToComponents:
                mgnl:folder:
                  icon: icon-folder
                  showPath: true
                event:
                  icon: icon-datepicker
                  showPath: true
#  6.2.x and 6.3.0:
              #nodeTypeToIcon:
                #event: icon-datepicker

Example of the Marketing Tags app marketing-tags/apps/marketing-tags.yaml

# new in 6.3.1+:
          columns:
            name:
              nodeTypeToComponents:
                mgnl:marketing-tag:
                  icon: icon-tag
                  showPath: true

# 6.2.x and 6.3.0:
           #columns:
             #name:
              #nodeTypeToIcon:
                 #mgnl:marketing-tag: icon-tag
         #list:
           #columns:
             #name:
               #nodeTypeToIcon:
                 #mgnl:marketing-tag: icon-tag

If you have customized browser subapps, you must adapt your configuration by updating your custom data provider for search to function.

Below is an example (migration of the Resource Files app) of how to adapt your configuration.

In the info.magnolia.resources.app.data.ResourceFilteringDataProvider class, the filtering logic is unwrapped.

Click to see the link to a GitHub diff

https://github.com/magnolia-cms/doc-migration-example-631/commit/11ceb8ac31c6f2121ca7ea0ba1e462fa1a27aad9

In the resources/resources-app/apps/resources.yaml definition, shown in the tabs, the filterComponent properties under contentViews are removed and replaced by filters under workbench.

Click to see the tabs

6.3 Resource Files app definition
6.2 Resource Files app definition

...
    workbench:
      filters:
        - name: overridden
          icon: icon-logs-settings
          $type: dropdown
          visible: true
          datasource:
            $type: optionListDatasource
            options:
              true:
                value: true
              false:
                value: false
        - name: origin
          icon: icon-language-app
          $type: dropdown
          filterOperator: STARTS_WITH
          textInputAllowed: true
          emptySelectionAllowed: true
          visible: true
          datasource:
            class: info.magnolia.resources.app.data.ResourceOriginDataSourceDefinition
        - name: status
          icon: icon-spinner-full
          $type: dropdown
          filterOperator: STARTS_WITH
          textInputAllowed: true
          emptySelectionAllowed: true
          visible: true
          datasource:
            $type: optionListDatasource
            options:
              - name: 0
                label: Not activated
                value: 0
              - name: 1
                label: Modified
                value: 1
              - name: 2
                label: Activated
                value: 2
      contentViews:
        - name: views
          $type: treeView
          rowStyleGenerator: info.magnolia.resources.app.row.ResourceStatusRowStyleGenerator
          multiSelect: false
          columns:
            name:
              class: info.magnolia.resources.app.column.ResourceNameColumnDefinition
            overridden:
              class: info.magnolia.resources.app.column.IsOverridingColumnDefinition
              editor:
                field:
                  $type: checkBoxField
            origin:
              class: info.magnolia.resources.app.column.ResourceOriginColumnDefinition
            type:
              class: info.magnolia.resources.app.column.ResourceTypeColumnDefinition
            status:
              class: info.magnolia.resources.app.column.ResourceStatusColumnDefinition
...

...
    workbench:
      contentViews:
        - name: views
          $type: treeView
          rowStyleGenerator: info.magnolia.resources.app.row.ResourceStatusRowStyleGenerator
          multiSelect: false
          columns:
            name:
              class: info.magnolia.resources.app.column.ResourceNameColumnDefinition
              filterComponent:
                $type: textField
            overridden:
              class: info.magnolia.resources.app.column.IsOverridingColumnDefinition
              editor:
                field:
                  $type: checkBoxField
              filterComponent:
                $type: checkBoxField
            origin:
              class: info.magnolia.resources.app.column.ResourceOriginColumnDefinition
              filterComponent:
                $type: comboBoxField
                emptySelectionAllowed: true
                textInputAllowed: true
                filteringMode: STARTSWITH
                datasource:
                  class: info.magnolia.resources.app.data.ResourceOriginDataSourceDefinition
            type:
              class: info.magnolia.resources.app.column.ResourceTypeColumnDefinition
              filterComponent:
                $type: textField
            status:
              class: info.magnolia.resources.app.column.ResourceStatusColumnDefinition
              filterComponent:
                $type: comboBoxField
                emptySelectionAllowed: true
                datasource:
                  $type: optionListDatasource
                  options:
                    - name: 0
                      label: Not activated
                      value: 0
                    - name: 1
                      label: Modified
                      value: 1
                    - name: 2
                      label: Activated
                      value: 2
...

Don’t forget to add the i18n properties for your filters.

Click to see an example

...
# filters
resources.browser.filters.overridden.label = Overrides
resources.browser.filters.overridden.options.true = True
resources.browser.filters.overridden.options.false = False
resources.browser.filters.origin.label = Origin
resources.browser.filters.status.label = Status
...

Magnolia has adapted the customized Definitions, JCR Browser, Marketing Tags, and Resource Files apps to use the default configuration. The following 5UI-based apps remain unchanged: Campaign Publisher, Content Translation, Groovy, Configuration, and Passwords apps.
