WeChat Login module

Security and authentication Incubator Version 1.0.0 Magnolia 6.2 & 6.3 compatible^[1]

The WeChat Login module integrates WeChat as an authentication method for Magnolia. It builds on top of the SSO Module by adding necessary configuration and client support for WeChat.

This module is at the INCUBATOR level.

Installing with Maven

Maven is the easiest way to install the module. Add the following to your bundle:

<dependency>
  <groupId>info.magnolia.wechat</groupId>
  <artifactId>wechat-login</artifactId>
  <version>1.0.0</version>
</dependency>

Preconditions

To enable WeChat authentication, you need to register your application on the WeChat Open Platform and retrieve the necessary credentials:

Register Your Application

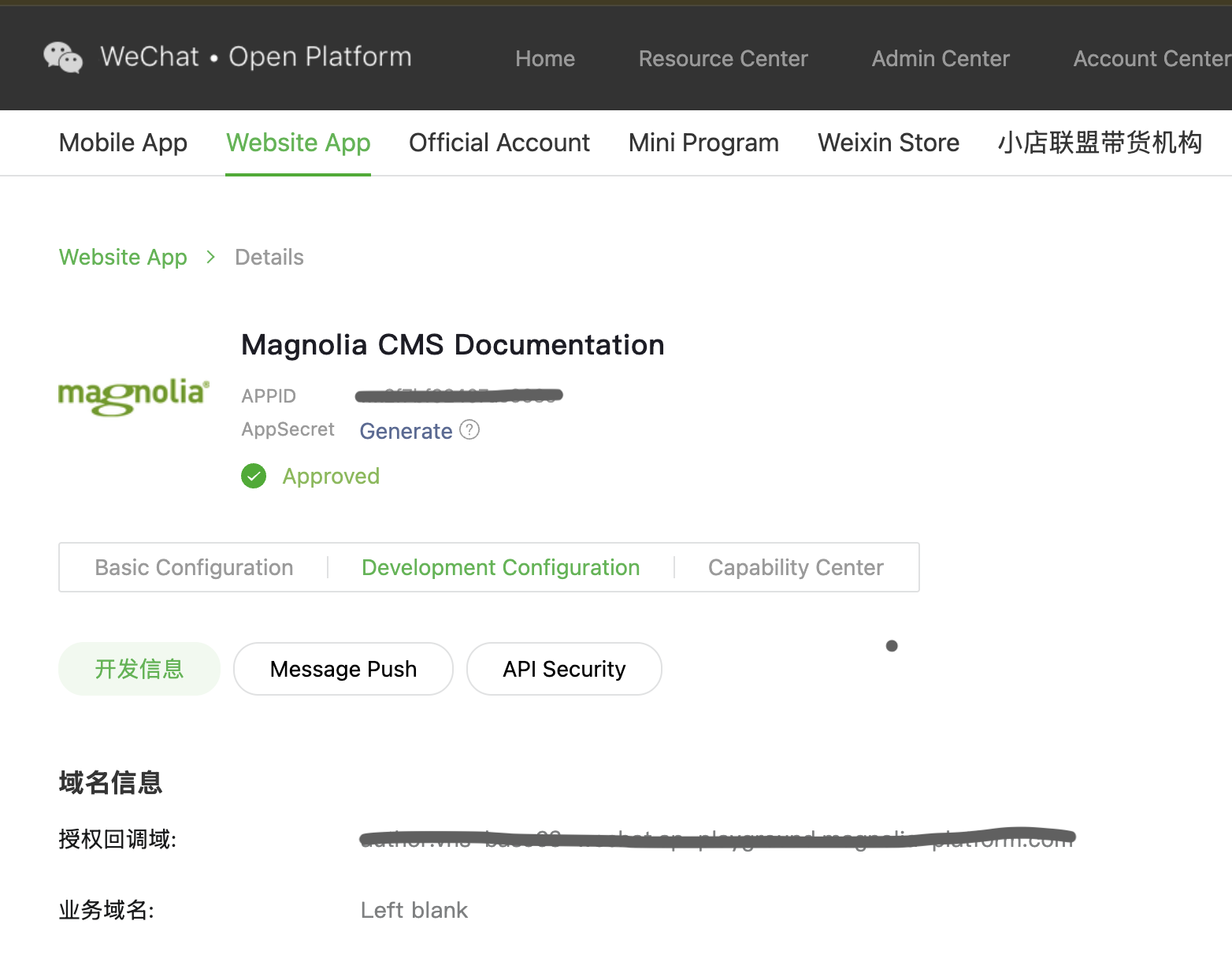

Get Your Credentials: After successful registration, WeChat will provide you with:
```
App ID → corresponds to wechat.key
App Secret → corresponds to wechat.secret
```
Make sure the domain of your Magnolia instance is whitelisted in your WeChat application settings.

Configuring JAAS

Please follow the JAAS configuration guide provided by the Magnolia SSO documentation

Install verification

To verify the installation, ensure the following configuration and user setup are in place.

Login Handler Configuration

Check the login handler under

Config → /server/filters/login/loginHandlers/sso

class info.magnolia.sso.auth.login.CustomSsoLoginHandler

Default User Groups & Roles

Ensure the following is configured:

User Groups: wechat-login-base
User Roles: wechat-login-base

These are required for proper role-based access control.

SSO configuration

Follow the guide on SSO YAML configuration. Below is an example configuration snippet for WeChat SSO:

callbackUrl: /.auth
postLogoutRedirectUri: <postLogoutRedirectUri>

authorizationGenerators:
  - name: fixedRoleAuthorization
    fixed:
      targetRoles:
        - wechat-login-base
      targetGroups:
        - wechat-login-base

clients:
  wechat.class: org.pac4j.oauth.client.WechatClient
  wechat.key: <wechat.key>
  wechat.secret: <wechat.secret>
  wechat.callbackUrl: <callbackUrl>
  wechat.authorizationGenerators: fixedRoleAuthorization

userFieldMappings:
  name: nickname
  fullName: nickname
  email: unionid        # Substitute for email since WeChat doesn't return one
  language: language
  removeEmailDomainFromUserName: false
  removeSpecialCharactersFromUserName: false

WeChat Login Settings

You can control user creation and authorization behavior using the following options:

createShadowUser: false # true or false
defaultUserGroups:
  - group1
  - group2
defaultUserRoles:
  - role1
  - role2

Explanation:

createShadowUser under Users → /admin/sso-external-users:
- true: Creates a shadow user in Magnolia based on the unionid during the first login, assigning defaultUserGroups and defaultUserRoles
- false: No user is created. Authorization is managed via fixedRoleAuthorization.
defaultUserGroups: Groups assigned to the shadow user upon creation.
defaultUserRoles: Roles assigned to the shadow user upon creation.

Usage Scenarios

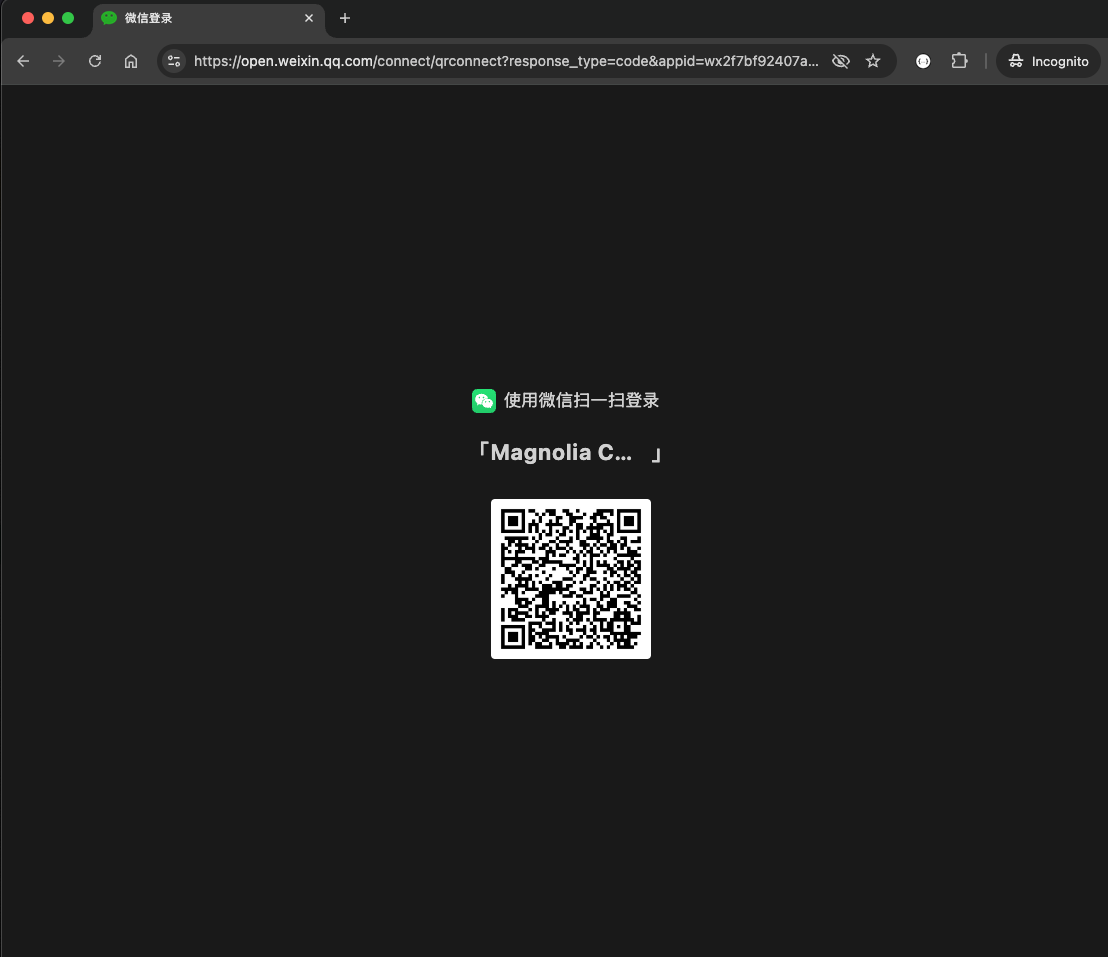

After the module is installed and configured, when a user accesses the Magnolia instance, a WeChat QR code will be displayed on the login screen. The user must scan this QR code using the WeChat mobile app to authenticate. Once logged in, the system will handle authorization based on the createShadowUser flag in your configuration:

wechat qrcode

If createShadowUser: true

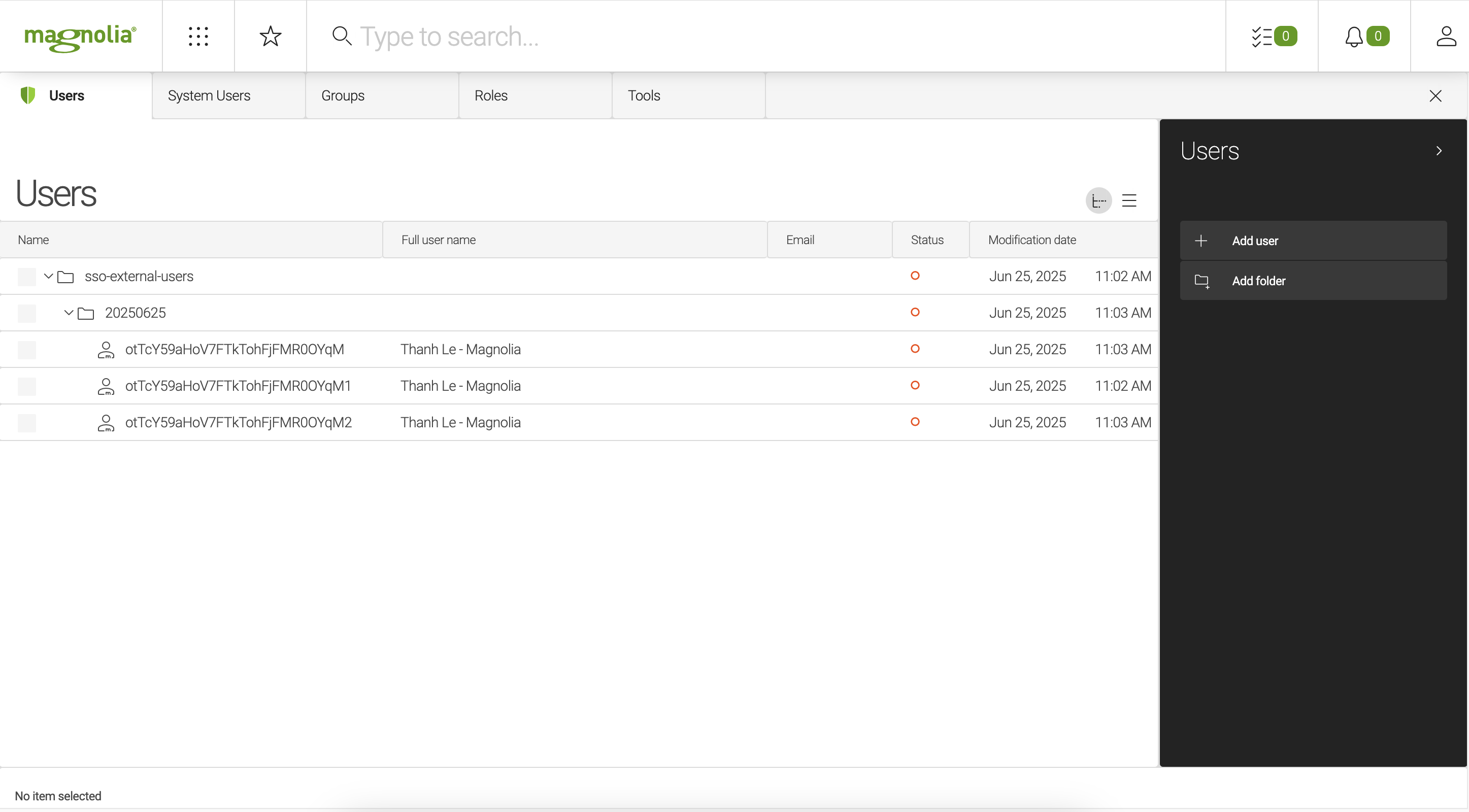

- A shadow user will be created in Magnolia using the unionid from WeChat. This user will be assigned the defaultUserGroups and defaultUserRoles as defined in the configuration. For subsequent logins, the system will authorize the user based on Magnolia’s internal security configuration (groups and roles).
If createShadowUser: false
- No user account will be created in Magnolia. Instead, the system will authorize the user using the fixedRoleAuthorization defined in the SSO configuration.

REFs:

Contributors:

Thanh Le thanh.lehai@magnolia-cms.com

Changelog

Version Notes

Version	Notes
`Version 1.0.0`	Initial release of the module.

Version 1.0.0

Initial release of the module.

1. This module was last tested on Magnolia 6.2.59 & 6.3.9. If you are using a previous Magnolia release or version, please take this into consideration.
